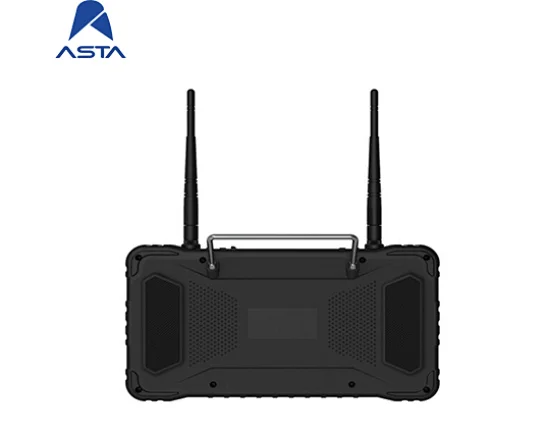

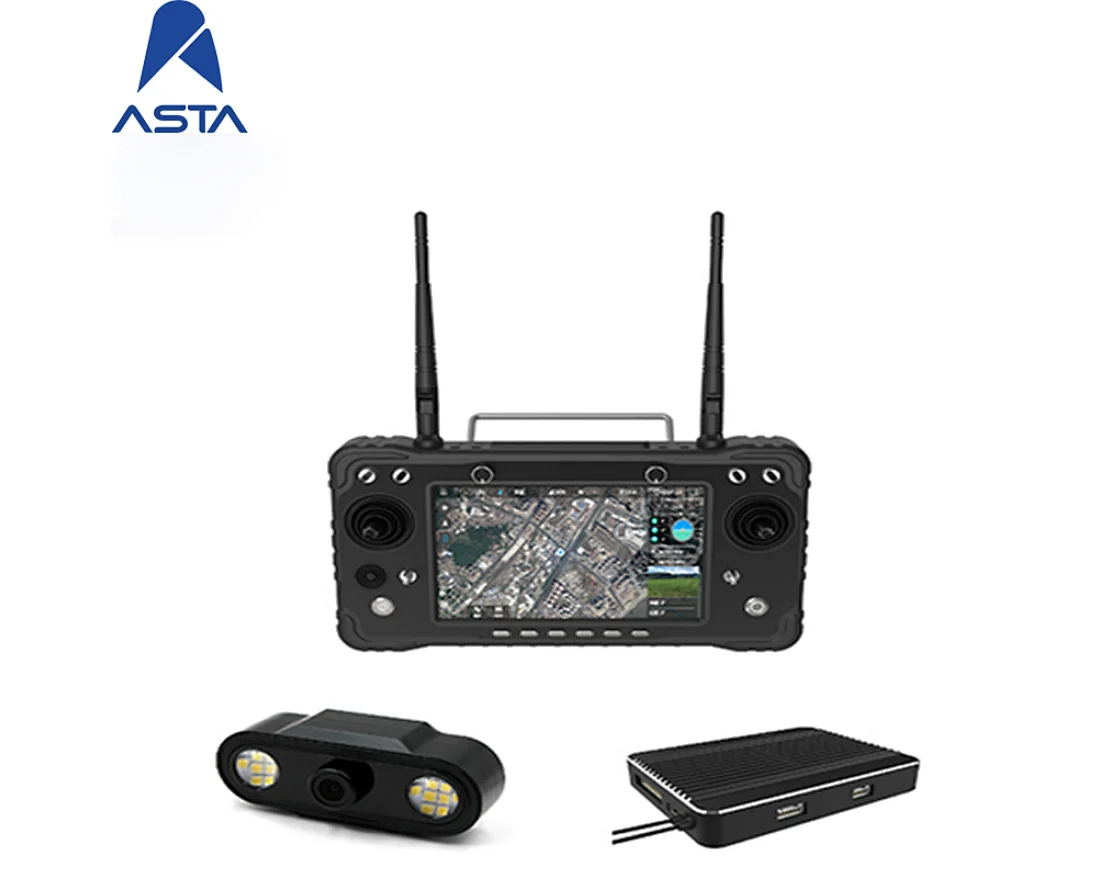

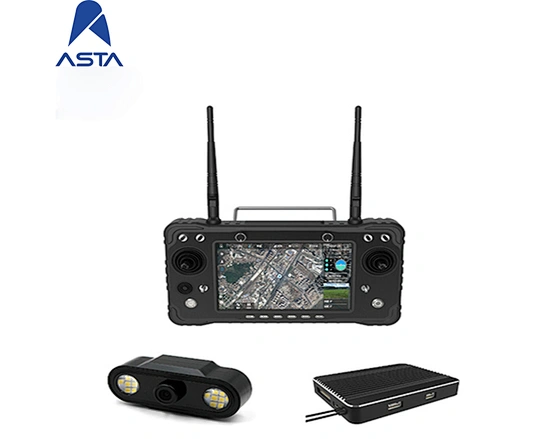

H16 remote control
2.4Ghz 1080P 10Km 30Km Digital Video Transmission Remote Controller
H16
EXW,FOB,CFR,DDP
1 piece
1000piece / Month
Guangdong,China
3Day
Quantity:
H16 Smart Remote Control is a UAV communication link that integrates remote control, data transmission, and image transmission. It runs Android system and supports mainstream ground stations such as QGC.
| working frequency: | 2.400~2.483GHZ |
| Endurance: | 6~20h |
| Material: | plastic |
| Screen size: | 7inch |
| Screen type: | LCD |
| Resolution: | 1920*1200 |
| Brightness: | 2000nit |
| Rc size: | 272*183*94mm |
| Battery: | 20000mah |
| Weight: | 1034G |
| Port: | LANx1;TYPE Cx1;OTGx1;TFx1; |
| Operating temperature: | -10℃~+55℃ |
| Mumber | Comment | Mumber | Comment |
| 1 | 2.4G 3DB Antenna | 8 | button |
| 2 | SW2 | 9 | Right stickx2,y2 |
| 3 | Three gear switch SW1 | 10 | Three gear switch SW4 |
| 4 | Left stickx1,y1 | 10 | Three gear switchSW3 |
| 5 | Gimbal rockerx3,y3 | 12 | Knob 2 |
| 6 | Power button | 12 | Knob1 |
| 7 | 6-position switch |
