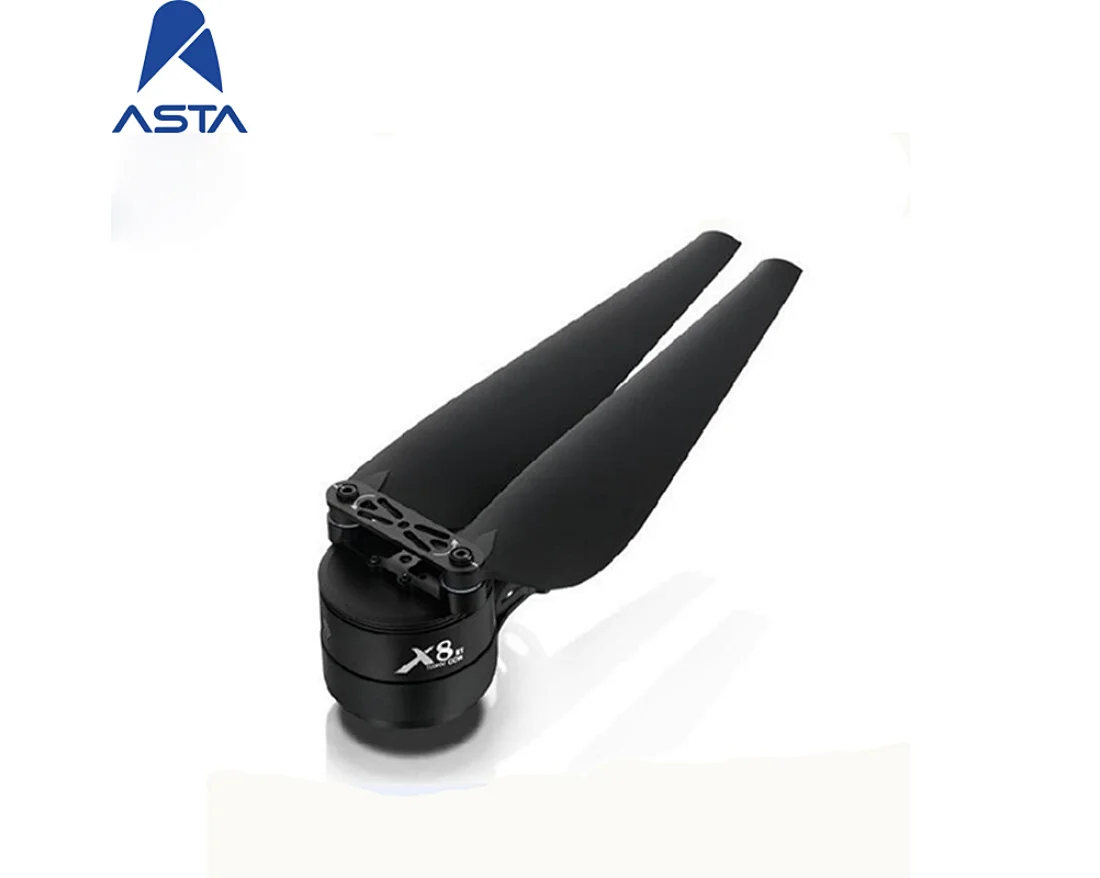

Drone power system
X8 strong power system for 16L payload drone
X8
EXW,FOB,CIF,DDP
1 set
1000set / Month
Guangdong, China
3Day
Quantity:

The X8 Drone power system is a power system capable of carrying a load of 5~7kg (perrotor) for agricultural drones. It can provide the thrust of up to 15.3kg and match 30/35mmcarbon fiber tube arms. It's waterproof an dustproof to IPX7 standard and resistant  to rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature and impact. Italso features the algorithm used for optimizing the FOC ESC & Motor system and makingthe system more balanced, multiple protections like power-on self detection, power-onabnormal voltage, over-current and motor lock-up, and the real-time data output function.

Product Name: X8 Drone power system

System Combo Max. Thrust: 15.3kg/Axis (48V, Sea Level )

Recommended LiPo Battery: 12S LiPo

Recommended Takeoff Weight:5-7kg/Axis(48V,Sea Level)

Combo Weight: 1040g

Waterproof Rating: IPX7

Operating Temperature: -20℃~65℃

Motor Stator Size: 81*20mm
KV Rating: 100KV

O.D of Carbon Fiber Tube: Φ35mm/Φ30mm (*Tube Adapter will be Needed)

Bearing: NSK Ball Bearing (Waterproof) ESC
Recommended LiPo Battery: 6-12S LiPo

PWM Input Signal Level: 3.3V/5V (Compatible )

Throttle Signal Frequency: 50-500Hz Operating
Pulse Width: 1100-1940 μs (Fixed or cannot be Programmed )

Max. Input Voltage: 52.2V

Max. Input Current (Cont.): 80 A(w/ Good HeatDissipation )

Max. Peak Current (10s): 100 A (w/ Good Heat Dissipation )

BEC: No Nozzle Mounting Holes: Φ28.4mm-2*M3 Propeller
Diameter×Pitch: 3090

Weight: 180g

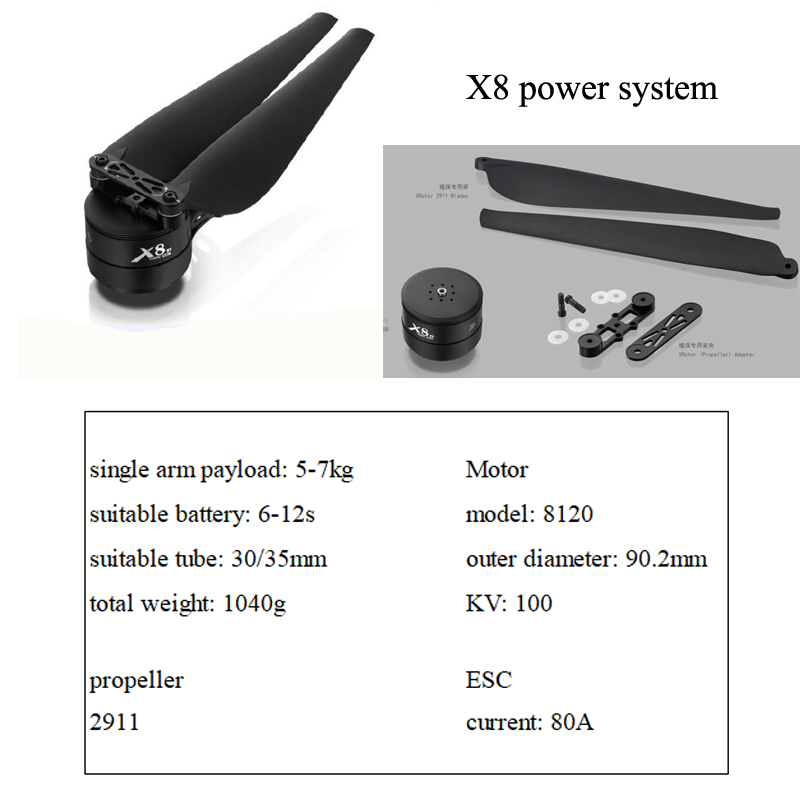

X8 Drone power system

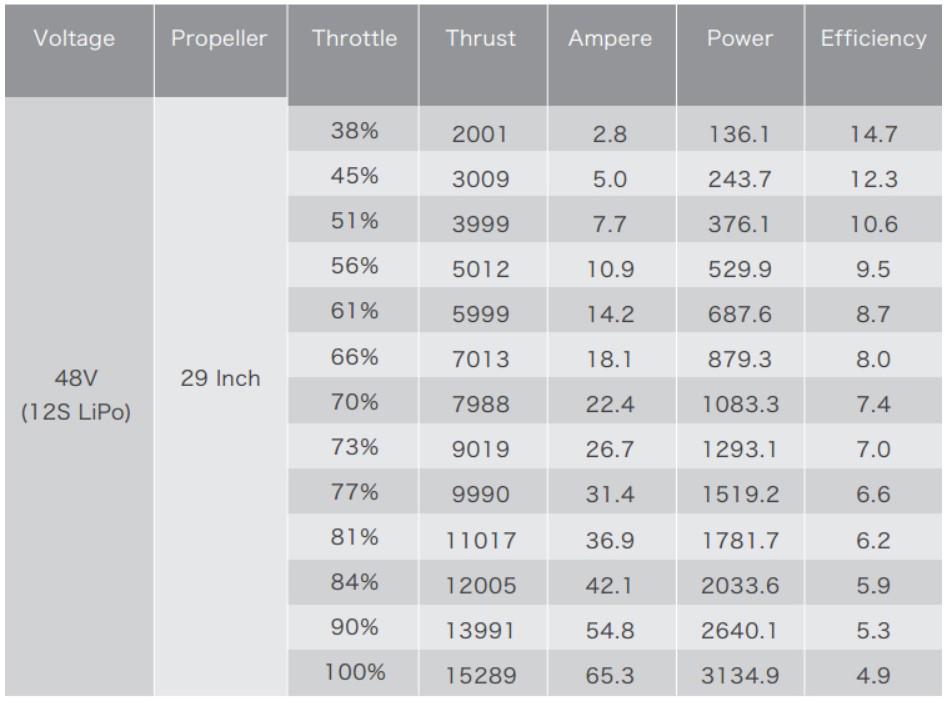

X8 Drone power system specification chart
