ASTA-S 100ah 51.2V 5.12KWh Stackable Battery Storage
LiFePO4 Battery Pack With LCD Solar Home Energy Storage
ASTA-S 100ah 51.2V
EXW,FOB,CIF,DDP
1 piece
1000piece / Month
Guangdong, China
15Day
Quantity:
1. Parameters:
Rated energy(kWh): 5.12KWh
Configuration: 2P16S
Nominal Voltage(V): 51.2V
Working Voltage(V): 42V~58.4V
Nominal Capacity(Ah): 100Ah
Rated charge/discharge Current(A): 50A/100A @25±2℃
Maximum charging current: 100A@25±2℃
Maximum discharge current: 100A @25±2℃
Working Temperature: 0～40℃(Charge) -20～40℃(Discharge)
Humidity(%) :5~95%
Altitude Limited(m) :0-3000m
Weight(Kg) :48Kg±3kg
Dimension(mm): 618×450×208.5mm
Storage temperature and humidity:
-10℃~35℃（Within one month of storage）
25±2℃（Within three months of storage）
65%±20%RH
Weight: 48kg±3kg
Cycle life:6000 cycles @25℃ 50ACharge and discharge current 80%DOD
IP grade: IP20
Communication mode: CAN&RS485
Configuration: 2P16S
Nominal Voltage(V): 51.2V
Working Voltage(V): 42V~58.4V
Nominal Capacity(Ah): 100Ah
Rated charge/discharge Current(A): 50A/100A @25±2℃
Maximum charging current: 100A@25±2℃
Maximum discharge current: 100A @25±2℃
Working Temperature: 0～40℃(Charge) -20～40℃(Discharge)
Humidity(%) :5~95%
Altitude Limited(m) :0-3000m
Weight(Kg) :48Kg±3kg
Dimension(mm): 618×450×208.5mm
Storage temperature and humidity:
-10℃~35℃（Within one month of storage）
25±2℃（Within three months of storage）
65%±20%RH
Weight: 48kg±3kg
Cycle life:6000 cycles @25℃ 50ACharge and discharge current 80%DOD
IP grade: IP20
Communication mode: CAN&RS485
2.Features:
1. High safety lifepo4 battery
2. Ten-year warranty
3. Multi-level of protectionHigh energy density
4. Support 485 and CANcommunication
2. Ten-year warranty
3. Multi-level of protectionHigh energy density
4. Support 485 and CANcommunication

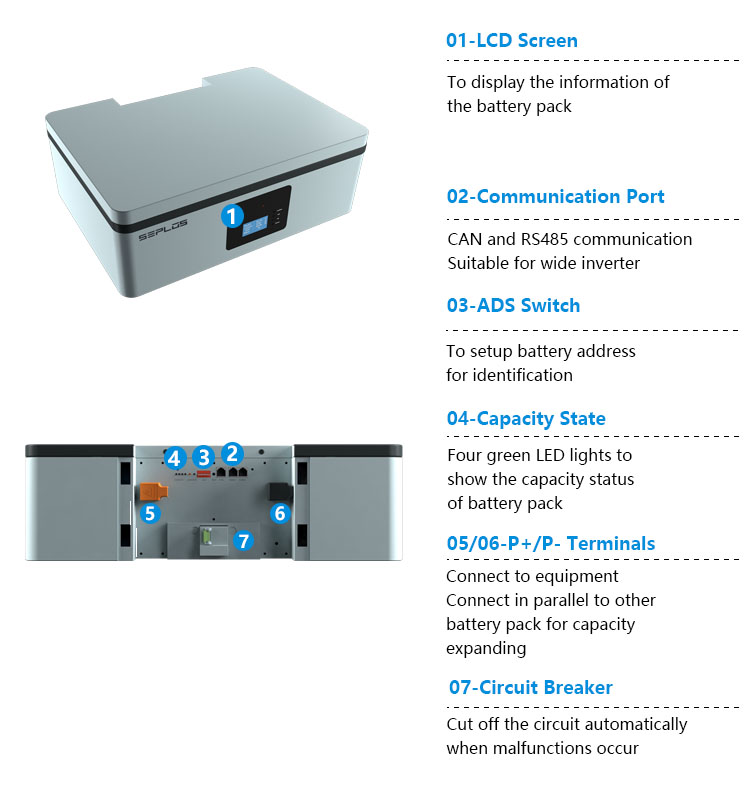

3. Details:
4. Related Products:
ASTA-7kwh ASTA-14kwh ASTA-21kwh ASTA-28kwh
