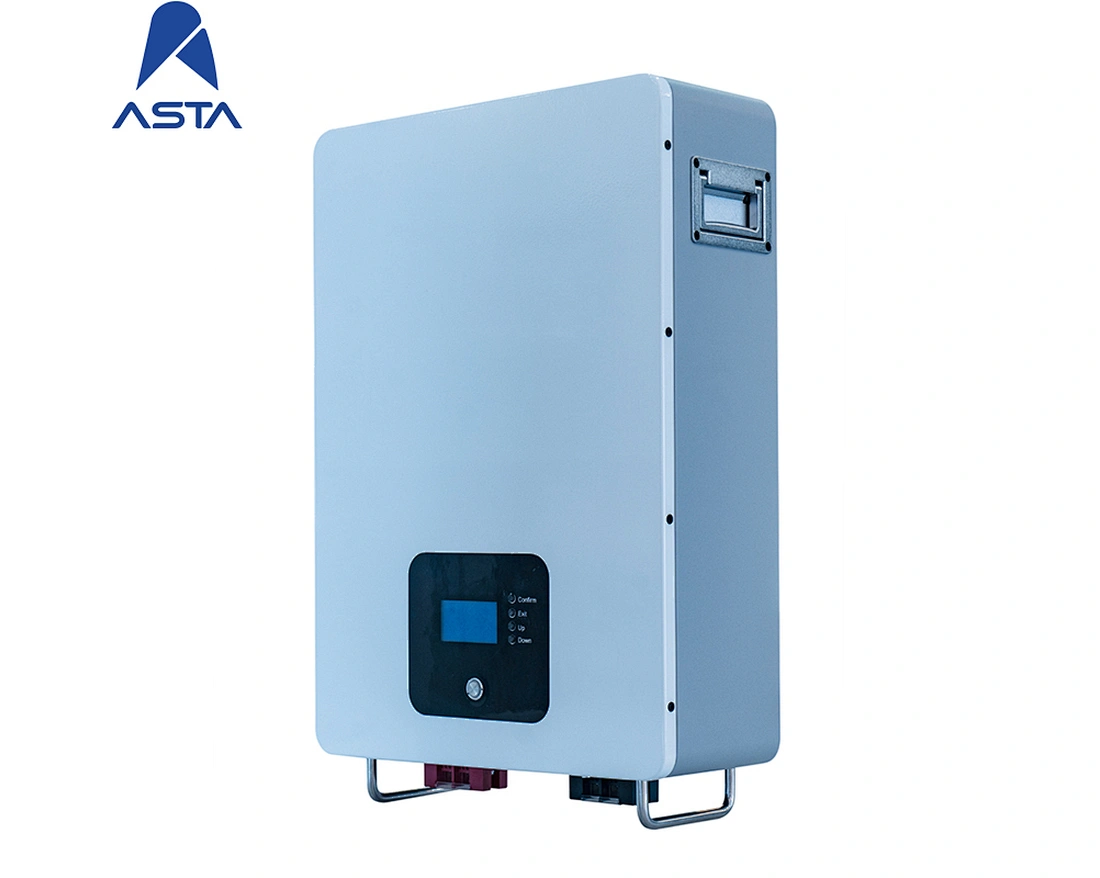

ASTA 100ah/200ah 51.2V Wall Mounted Battery Storage
LiFePO4 Lithium ion Battery Pack
ASTA-100ah 51.2V
EXW,FOB,CIF,DDP
1 piece
1000piece / Month
Guangdong, China
15Day
Quantity:
1. Parameters:
Battery Configuration 1P16S
Nominal Voltage 51.2V
Working Voltage Range 42V~58.4V
Nominal Capacity 100Ah
Nominal Power 5.12KWh（95%DOD）
Nominal Voltage 51.2V
Working Voltage Range 42V~58.4V
Nominal Capacity 100Ah
Nominal Power 5.12KWh（95%DOD）
Standard Charging/Discharging Current: 50A @25±2℃
Maximum Charging Current 100A@25±2℃
Maximum Discharging Current 100A @25±2℃
Working Ambient Temperature:0～40℃(Charge) -10～40℃(Discharge)
Storage Temperature & Humidity: -10℃~35℃ (within 1 month storage)
Maximum Charging Current 100A@25±2℃
Maximum Discharging Current 100A @25±2℃
Working Ambient Temperature:0～40℃(Charge) -10～40℃(Discharge)
Storage Temperature & Humidity: -10℃~35℃ (within 1 month storage)
25±2℃ (within 3 months storage) 65%±20%RH
Size: (L x W x H) (563)×(399)×(162)mm
Weight 48Kg±3kg
Cycling Lifespan:6000 cycles @25℃ 50A Charging/discharging current 80% DOD
IP Rate: IP 2X
Communication CAN or RS485
Altitude 0-3000m
Humidity Range 5~80%
Size: (L x W x H) (563)×(399)×(162)mm
Weight 48Kg±3kg
Cycling Lifespan:6000 cycles @25℃ 50A Charging/discharging current 80% DOD
IP Rate: IP 2X
Communication CAN or RS485
Altitude 0-3000m
Humidity Range 5~80%
2.Features:
1. High quality LiFePO4 Lithium ion Battery
2. Waterproof grade up to IP65
3. Support 1C charging and discharging
4. Safe, stable and superior performance
5. Built-in BMSZ smart protection
6. Suitable for parallel, off-grid, etc.
2. Waterproof grade up to IP65
3. Support 1C charging and discharging
4. Safe, stable and superior performance
5. Built-in BMSZ smart protection
6. Suitable for parallel, off-grid, etc.
7. Wall-mounted to save space
8. 5KWH/10KWH...optional
9. Green, environmentally friendly and pollution-free
10. Variety of styles to choose from
3. Related Products:
ASTA-100ah 51.2V ASTA-200ah 51.2V
