Drone propulsion system
Drone propulsion system
X6 power system for agriculture drone with strong propulsion
1 set
10000set / Month
Guangdong, China

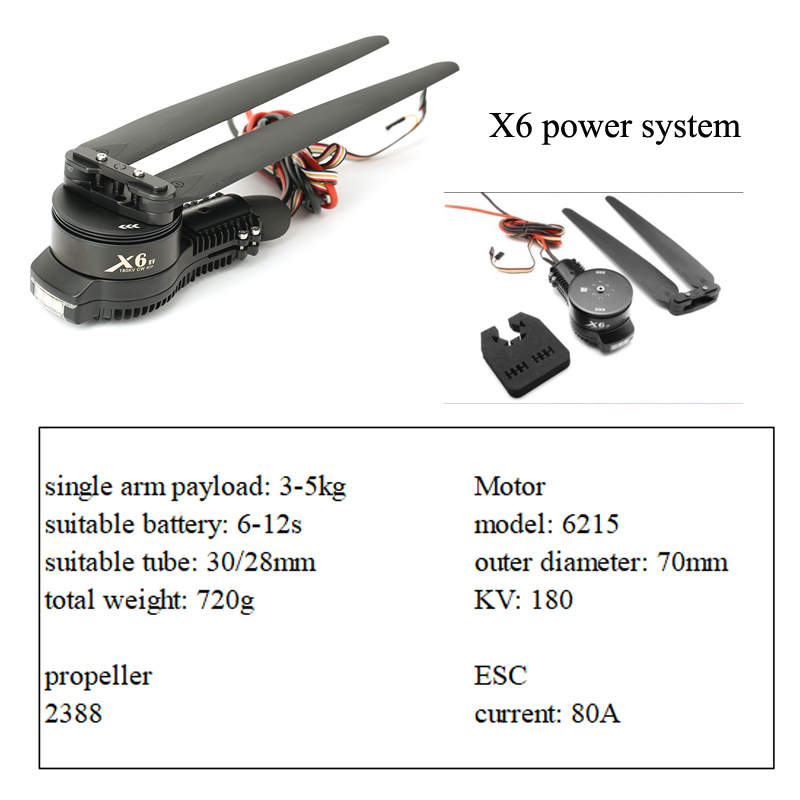

The X6 Drone propulsion system, which integrates motor, ESC, propeller and motor mount(with the optional 30 to 28 tube adapter, its compatible with 28mm&30mm diameter carbon fiber tubes) together, is easy to mount and use.

Note: with the fodable 2388 propeller, the propulsion system is capable of carrying the load of 3~5kg(that is 18~30kg for a hexacopter)

Product Name: X6 Drone propulsion system

Max Thrust: 12kg/Axis(48V,Sea Level)

Recommended LiPo Battery: 125 LiPo

Recommended Takeoff Weight: 3-5kg/Axis(48V,Sea Level)

Combo Weight: 720g

Waterproof Rating: IPX7

Operating Temperature: -20℃-50℃

Motor Outer Diameter: 70mm

KV Rating: 180KV

O.D of Carbon Fiber Tube: +30mm/+28mm(*Tube Adapterwill be Needed

Bearing: Imported Bearing

Recommended LiPo Battery: 6-12S LiPo

PWM Input Signal Level: 3.3v/5v(Compatible)

Throttle Signal Frequency: 50-500Hz

Operating Pulse Width: 1100-1940us(Fixedorcannotbe Programmed)

Max. Input Voltage: 52.2V

Max.Input Current(Cont.): 80A(w/Good Heat Dissipation)

Max.Peak Current(10s): 100A(w/Good HeatDissipation)


Nozzle Mounting Holes: 428.4mm-2*M3

Propeller Diameter x Pitch: 2388

Weight: 91g(w/Propeller Adpater,Single Blade:36g)

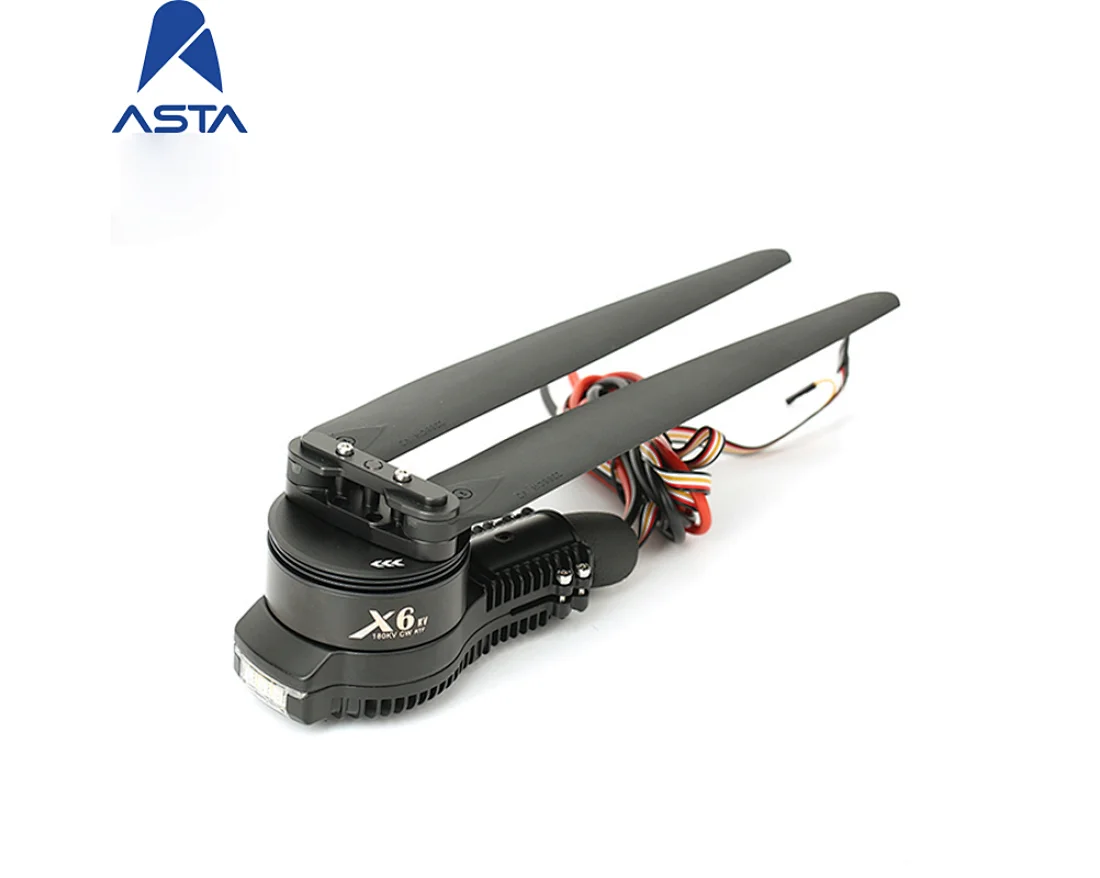

Drone propulsion system X6 hobby wing

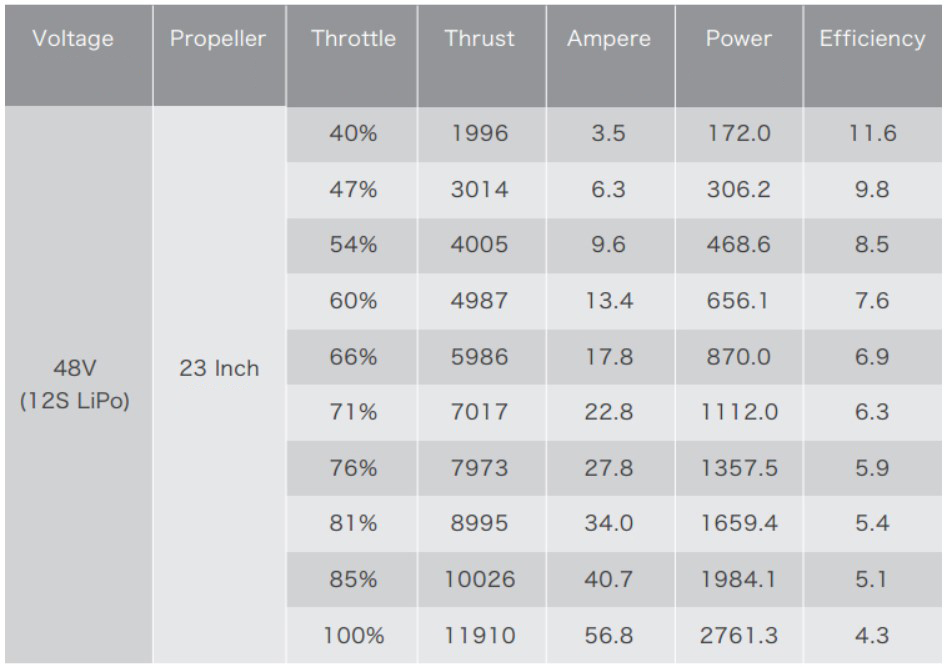

Drone propulsion system specification chart
