Model NO.
AGWP-22l
Price:
US $ 3999.00-6999.00 / piece
Delivery:
FOB/CIF
Minimum order quantity:
1 piece
Supply Ability:
100 piece / Week
Country of Origin:
Shenzhen
Stock Time:
10 Days
Quantity:

Product description:

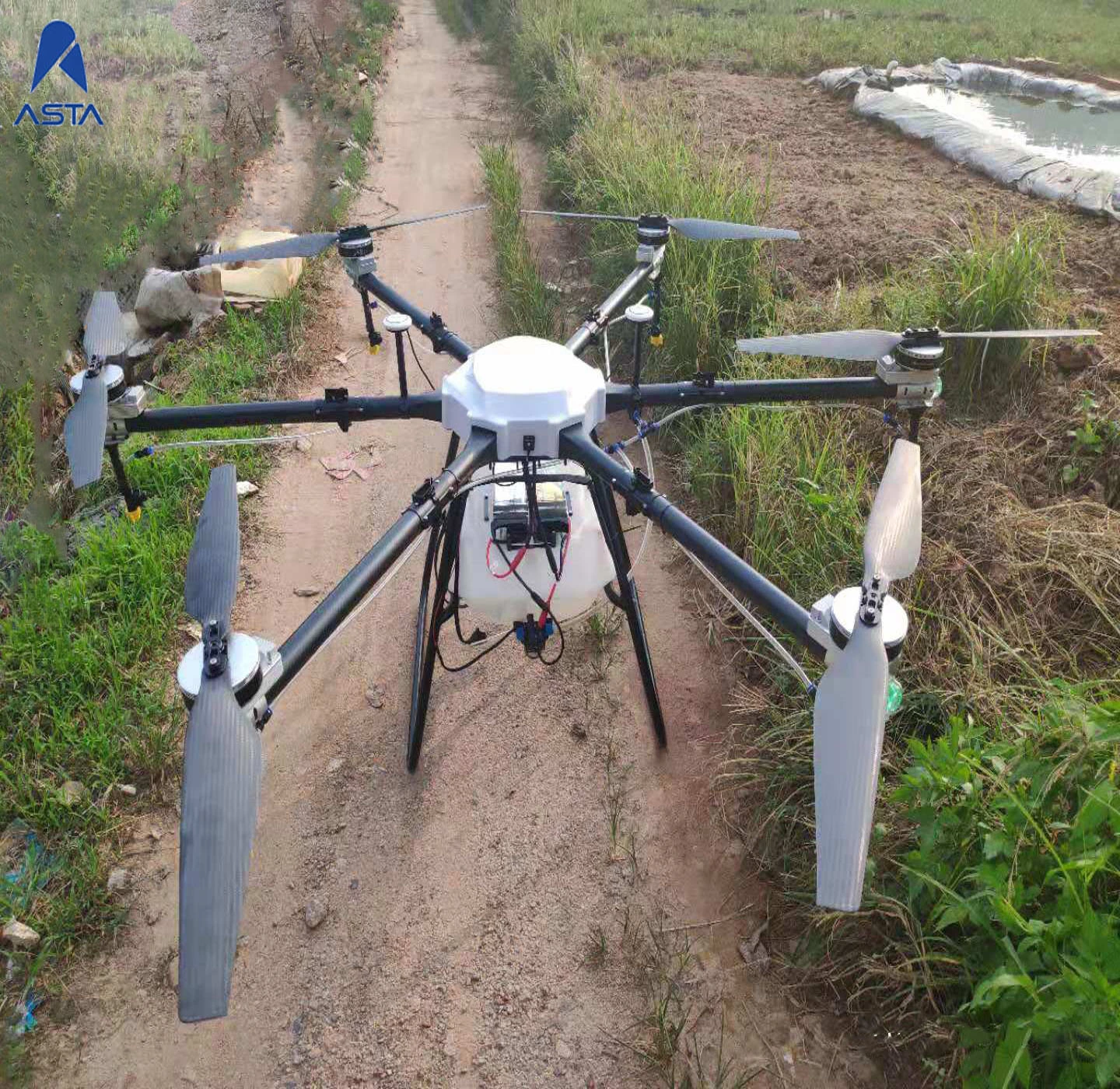

Quality new modelAGWP-22 high performance agricultural drone
Frame6 axis drone 3K carbon fiber
Flight control system:

a. Intelligent autonomous flight control system;

b. 7 inch touch screen of remote controller with a FPV camera;

c. Double sensors DPS ensure position within 0.5 meter.

Drones weight:20kg

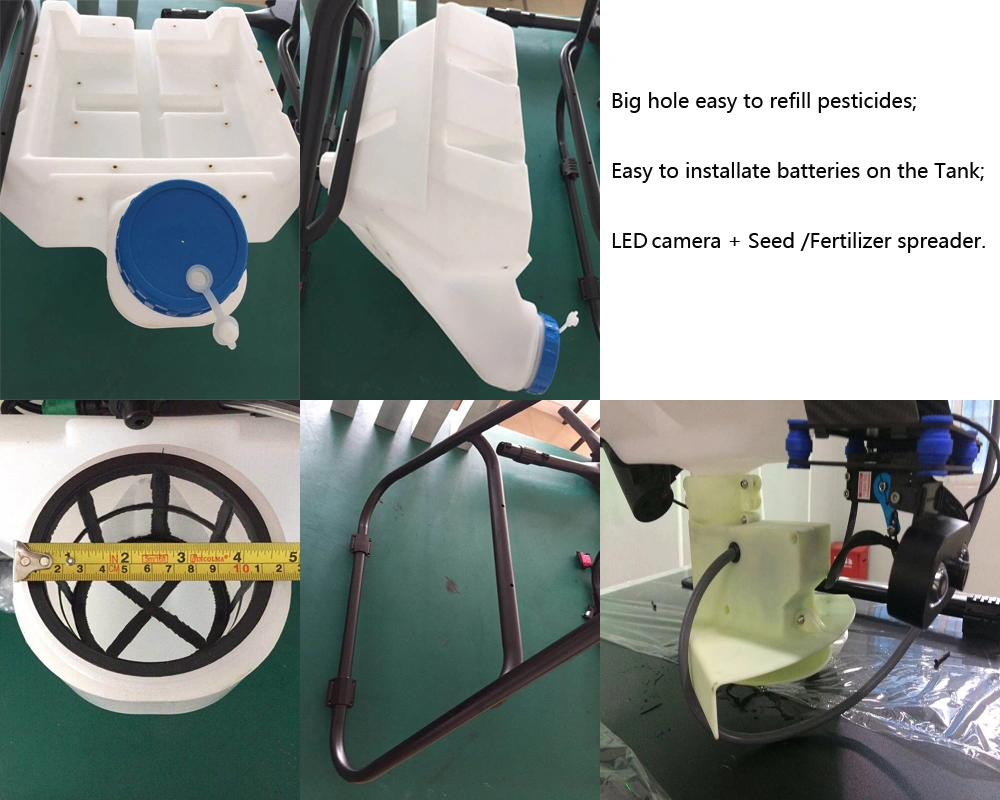

Tank payload:22L
Max take-off weight:45kg
TATTU Battery:6s lipo 23000mAh *2pcs
Duration time:

a. 12-15mins flying time when full load need replace 2 batteries.

b. 20-25mins when empty load need replace 2 batteries.

Spray Span:4-6m
Spray time:9-10mins per Tank
Control distance:5 km
Spraying speed:0~8m/s
Spray Efficiency:4-5 acres/ full tank
≥8 Hectares/hour
Altitude / Height:0-5m (Max 100m)
Motor:6pcs X9 motors
Nozzle QTY:

6pcs high pressure nozzles

Specification:

ModelAGWP-22
Remote Controller2.4 G
Main Parts Material3K carbon fiber
Total Weight (without battery)17kg
Unfolded Size1750*1530*560mm
Folded Size900*800*560mm
Battery Weight8kg (2pcs)
Empty Load Weight23kg
Full Load Weight48kg
Empty Load Flying Time20-25minutes
Battery6S 23000mAh X2
Battery Lifetime300-500 times
Telecontrol Distance1000m
Suggest Spraying Height1.5-3m above crops
Work Efficiency>8 hectares / hour
Operation Speed2-8m/second
Max Flying Speed10 m/s
Woking conditionLevel 4 wind speed
Standard Operating Payload22L
Flying Control ModeGPS/self-stabilization
Operate Temperature0-50 centigrade
Battery One Charging Time30-40 mins
Max Take Off Weight58 Kg
Max Flying Height50m
Spray Width5.0-7.0m ( 1.5 -3 m above the crops)
Standard Nozzle6 pcs
Gross Packing Weight60 kg
Packing size110X100X87cm

Quality new model AGWP-22 liter spraying drone:

1. Nice attractive design, popular hot selling in the market;

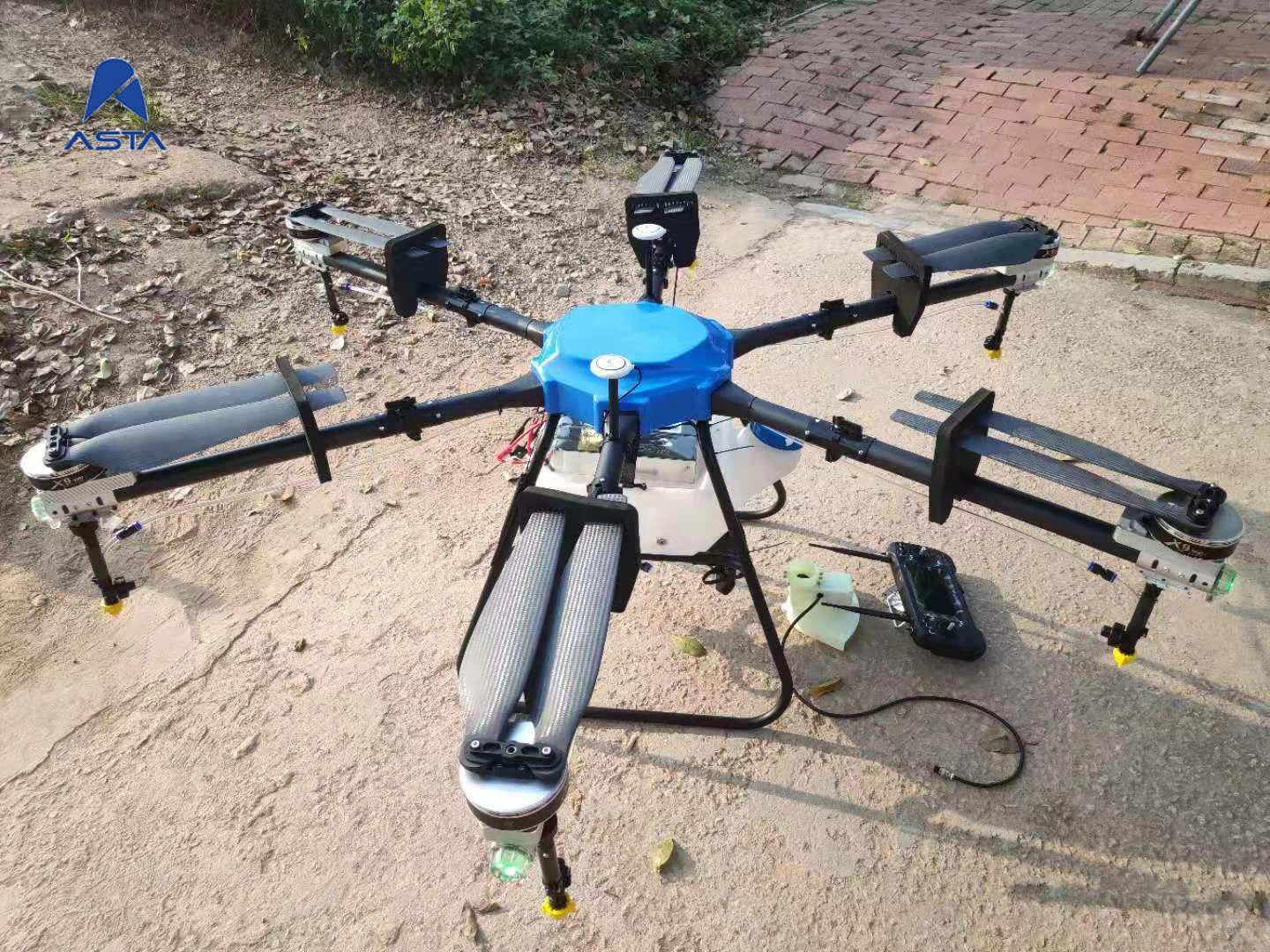

2. Quickly foldable arm :
3. Big unfold-size make drone praying crops more efficience;
4. Small fold-size easy to carry in outside;
5. Easy to installation parts & Maitaince & Carry in outside;

6. Best quality 6pcs X9 Brushless Motors with 6pcs nozzles;

7. High powerful long range 6S lipo 23000mAh batteries;

8. 7 inch touchable display for remote controller;

9. 6pcs Aluminum folding joints;

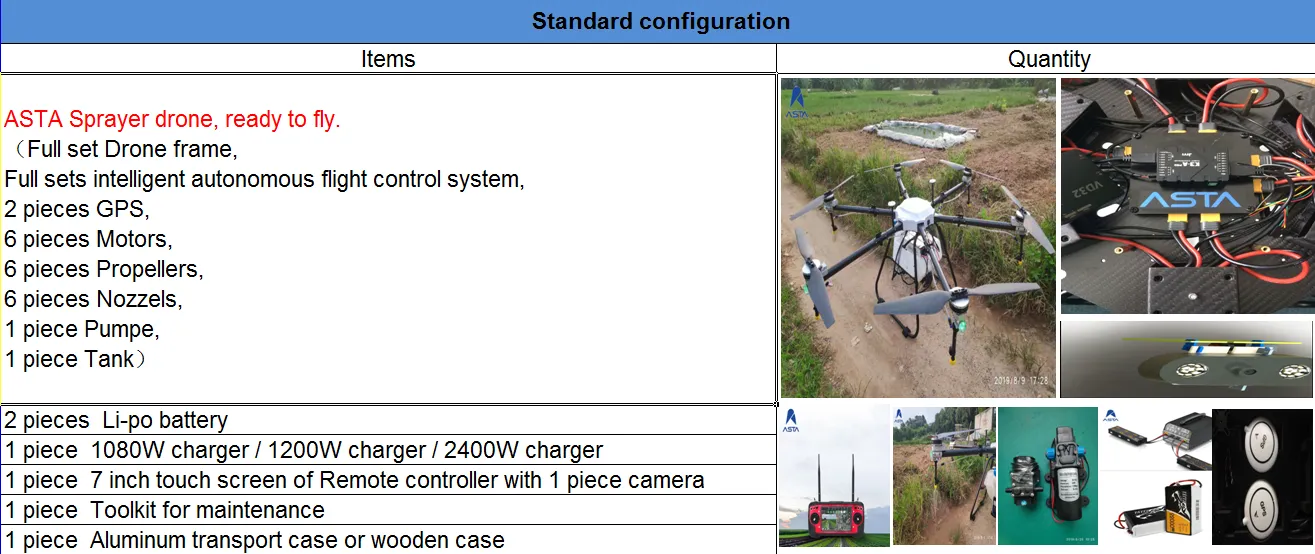

Standard configuration:


Porduct commonts:

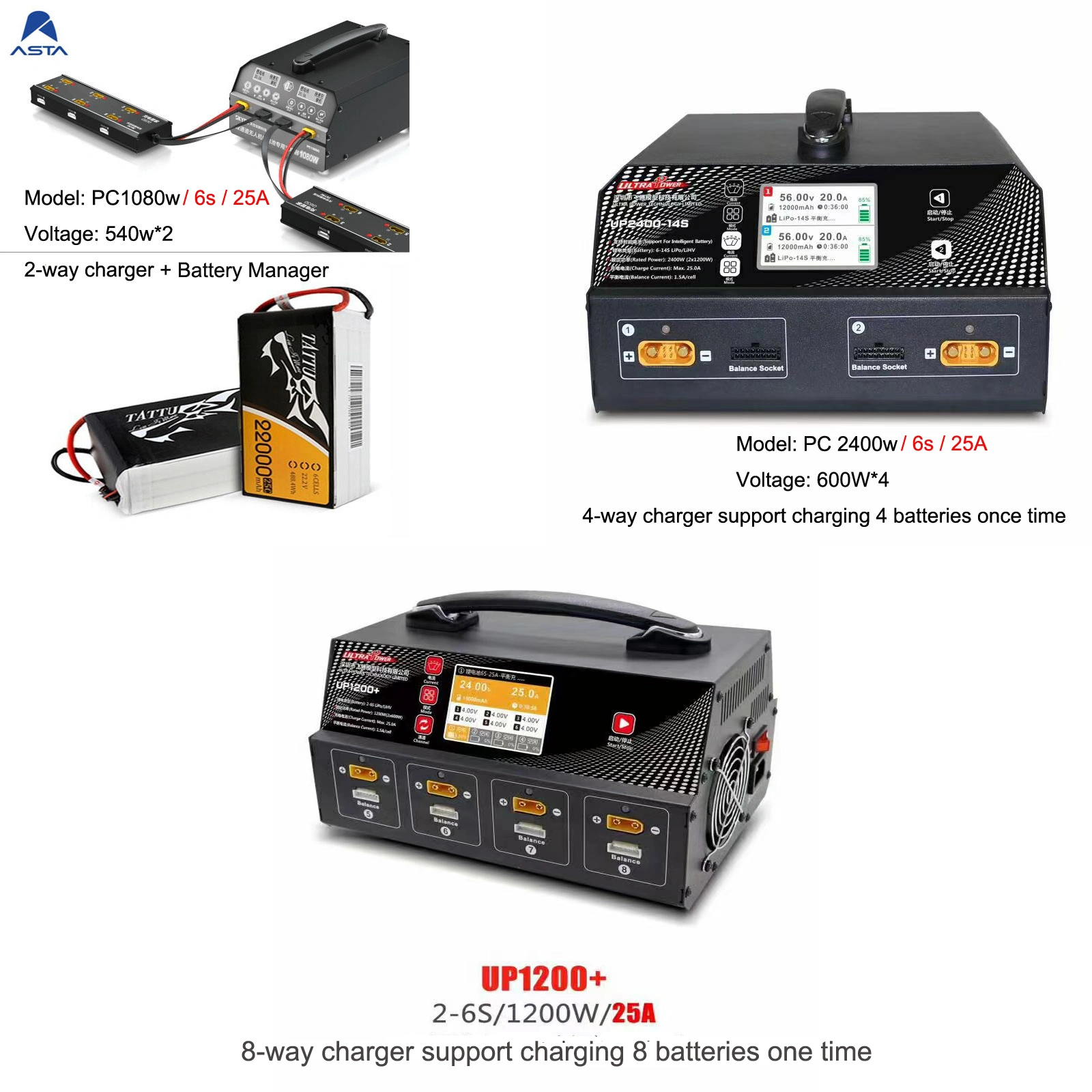

lipo Batteries & Portable battery charger:

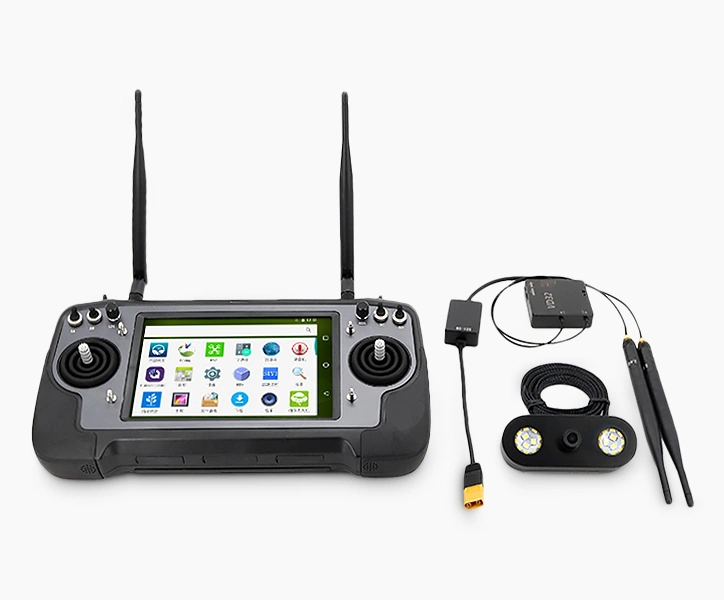

7 inch touch screen Remote Controller with a Camera:

Eaxtra parts:

Technical support & After-sales service:

  • Brand Name:ASTA
  • Model Number:AGWP-22l
